Applications & Features

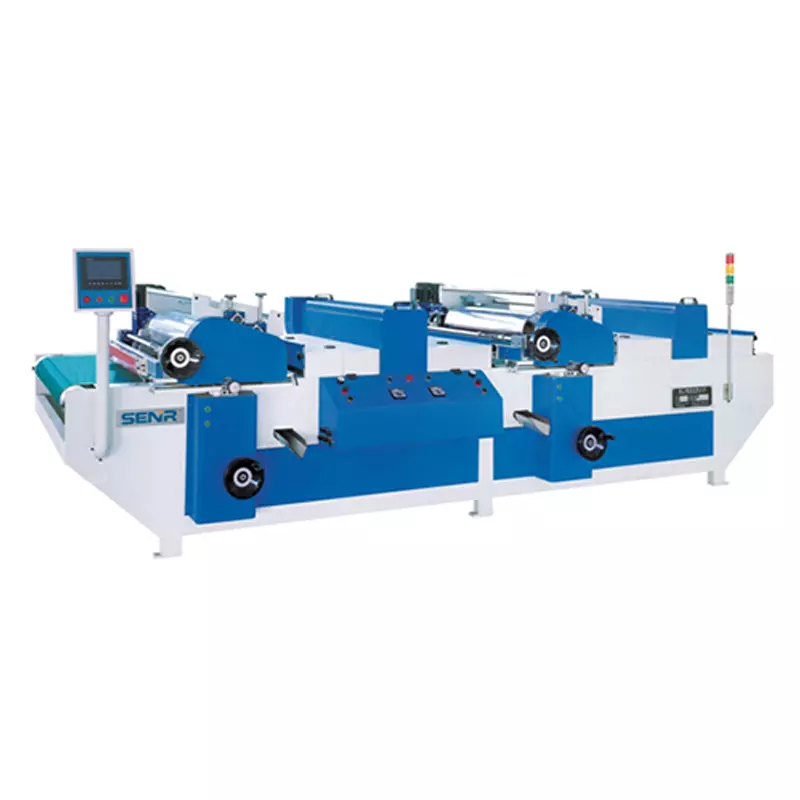

This machine is suitable for surface pattern printing on various flat‑panel workpieces, such as wooden boards, ceramic wall and floor tiles, acrylic panels, aluminum plates, door panels, shutters, MDF boards and other flat materials.
- Electric lifting design, labor‑saving and fast operation; easy‑to‑disassemble copper printing plate.
- Emergency‑stop switches are installed in multiple positions for enhanced operational safety.
- Multi‑color printing machines with servo‑motor‑driven automatic color‑registration are available upon customer request, with color‑registration accuracy up to 0.02 mm.
Technical Parameters
| Model |
Effective Working Width |
Effective Working Height |
Minimum Working Length |
Feeding Speed |
Feeding Power |
Rubber Roller Power |
Lamp Power |
Overall Dimensions (L×W×H) |
Total Power |
Machine Weight |
| 620 |
620 mm |
2‑60 mm |
300 mm |
5‑18 m/min |
1 kW |
1 kW |
5.6 kW |
6000 × 1750 × 1400 mm |
23.05 kW |
1300 kg |
| 920 |
920 mm |
2‑60 mm |
300 mm |
5‑18 m/min |
1 kW |
1 kW |
7.5 kW |
6000 × 2100 × 1400 mm |
28.75 kW |
1500 kg |
| 1320 |
1320 mm |
2‑60 mm |
300 mm |
5‑18 m/min |
1.5 kW |
1.5 kW |
9.6 kW |
6000 × 2450 × 1400 mm |
35.55 kW |
1900 kg |
