Product Overview

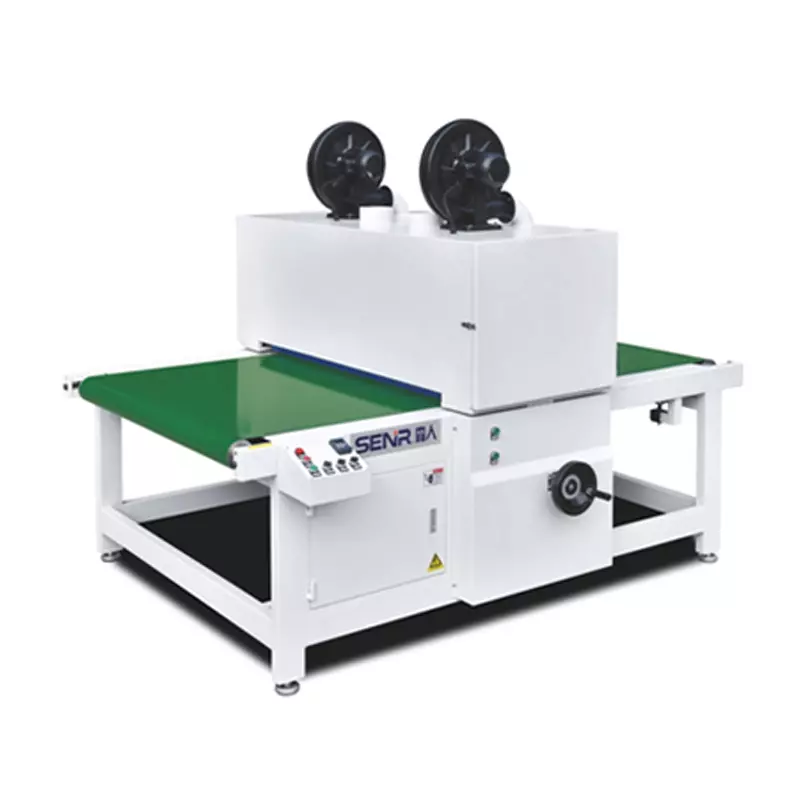

The Brush Dust Remover is a high-efficiency cleaning solution designed to remove dust, fine particles, and surface contaminants from flat workpieces prior to coating, printing, laminating, or packaging processes. It is widely used in production lines for glass, wood panels, furniture, metal sheets, and composite materials to ensure a clean substrate surface, thereby significantly improving coating adhesion and final product quality.

The machine employs high-speed rotating brush rollers to sweep away dust and particles from the workpiece surface. A powerful fan and specially designed dust collection hood create strong suction that extracts the loosened dust through external exhaust ducts connected to the integrated cover above the brush rollers, directing it to a centralized collection system. For applications with high static charge or stubborn contaminants, optional static elimination devices and compressed air nozzles can be incorporated to blow away fine dust firmly adhered to the surface.

Key Features

• High-Speed Double Brush Rollers – Equipped with dual sisal or horsehair brush rollers that rotate at high speed to effectively sweep dust from the board surface. Available in single-side or double-side cleaning configurations to suit different production requirements.

• Powerful Dust Extraction System – Features a high-performance fan and an advanced dust collection hood that ensures excellent suction efficiency, keeping the work area clean and preventing secondary contamination.

• Self-Cleaning Brush Mechanism – The brush rollers are automatically cleaned during operation. A mechanical scraper and compressed air nozzles remove particles from the brush filaments, maintaining consistent cleaning effectiveness around the clock.

• Adjustable Conveying Speed – Belt conveying system with adjustable speed (typically 5–20 m/min) allows flexible integration with upstream and downstream equipment such as sanders, roller coaters, curtain coaters, and drying lines

• .

• Optional Static Elimination – An optional static elimination device neutralizes surface static charges, preventing re-attraction of dust particles and ensuring thorough cleaning.

•

• Optional Air Knife – A high-pressure air knife or compressed air nozzles can be added to blow away fine dust that remains adsorbed on the workpiece surface.

•

• Robust Construction – Built with a durable frame and high-quality components for reliable long-term operation in demanding industrial environments.

Applications

The Brush Dust Remover is ideal for removing dust and contaminants from workpieces before or after the following processes:

It is commonly placed before roller coaters, curtain coaters, or spray lines for pre-coating dust removal, or after heavy-duty sanders to eliminate sanding residue.

Technical Specifications (Reference)

Note: Specifications are subject to change based on custom requirements. Please contact us for detailed technical data tailored to your application.

Why Choose Senren Brush Dust Remover

• Proven Reliability – Backed by over 20 years of experience in coating and surface treatment equipment.

• Customized Solutions – We design and manufacture equipment tailored to your specific production needs, whether for glass, wood, metal, or composite materials.

• Integrated Systems – Our brush dust removers can be seamlessly integrated into complete production lines, working in conjunction with washing machines, roller coaters, curtain coaters, drying systems, and other equipment.

• Global Trust – Our products are trusted by leading companies worldwide and exported to over 30 countries and regions.

Contact Us

Ensure a flawless coating finish by starting with a perfectly clean surface. Contact Senren Machinery today to discuss your dust removal requirements and discover how our Brush Dust Remover can enhance your production quality and efficiency.
