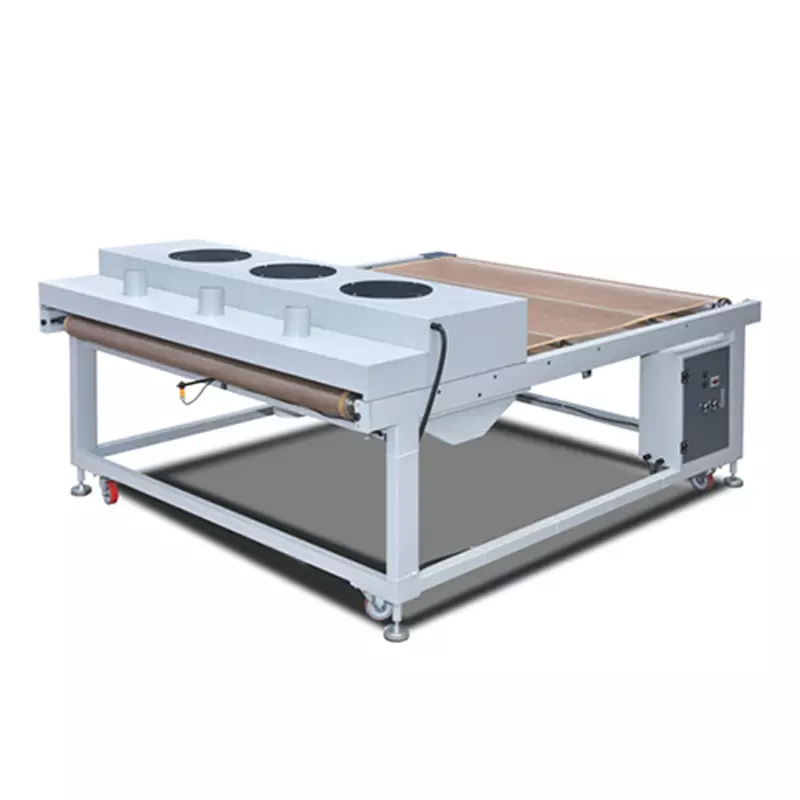

Air Cooling Conveyor

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Overview

The Air Cooling Conveyor is an essential component in modern glass coating and drying production lines. Designed to seamlessly integrate with roller coating machines and drying systems, this equipment efficiently cools heated glass surfaces after the coating and curing processes, ensuring product quality and preparing substrates for subsequent handling or packaging.

As glass products exit the drying or curing oven at elevated temperatures, they pass through the air cooling conveyor, where multiple rows of forced-air fans blow ambient or conditioned air evenly across the surface. This rapid yet controlled cooling process stabilizes the coating, prevents surface defects, and allows for immediate downstream processing—significantly improving production efficiency.

Applications

The Air Cooling Conveyor is widely used in:

Glass industry: Cooling of flat tempered glass, architectural energy-saving glass, coated glass, color-patterned glass, and automotive glass after roller coating, UV curing, or enamel printing.
Coating and painting lines: Post-curing cooling for UV, IR, and thermal-cured coatings on glass, metal, and composite panels.
Electronics and automotive components: Cooling of precision parts after surface treatment.
Food, chemical, and industrial processing: Forced-air cooling of products exiting ovens, dryers, or fryers.

Key Features

Feature	Benefit
Multi-row forced-air fan system	Uniform air distribution ensures consistent cooling across the entire product surface, minimizing thermal stress and coating defects.
Sturdy conveyor construction	Heavy-duty chains, anti-corrosion steel belts, and herringbone mesh belts provide excellent durability and ventilation efficiency.
Adjustable conveyor speed	Variable speed control (0–10 m/min) allows precise matching with upstream and downstream equipment for seamless line integration.
Wide processing width range	Available in working widths from 600 mm up to 2600 mm to accommodate various glass sizes and production requirements.
Customizable layout	Conveyor length can be tailored to fit workshop space and specific process needs.
Robust and reliable drive system	Low-maintenance motors and transmissions ensure stable, long-term operation with minimal downtime.
Easy maintenance access	Modular design allows quick cleaning, filter replacement, and routine inspections.

Technical Specifications (Standard Models)

Model	Effective Width (mm)	Thickness Range (mm)	Min. Length (mm)	Conveyor Speed (m/min)	Drive Power (kW)
SR-LQSS-600	600	2–80	500	0–10	0.75
SR-LQSS-900	900	2–80	500	0–10	0.75
SR-LQSS-1300	1300	2–80	500	0–10	0.75
SR-LQSS-1650	1650	2–80	500	0–10	1.5
SR-LQSS-1950	1950	2–80	500	0–10	1.5
SR-LQSS-2200	2200	2–80	500	0–10	2.2
SR-LQSS-2400	2400	2–80	500	0–10	2.2
SR-LQSS-2600	2600	2–80	500	0–10	2.2

Note: Conveyor length and overall dimensions can be customized according to production line requirements and site conditions.

Working Principle

Heated glass products exiting the coating or drying section enter the air cooling conveyor, where they are transported beneath multiple rows of overhead fans. Ambient or conditioned air is directed uniformly onto the product surface, rapidly reducing temperature through forced convection. The cooled products then proceed to the next stage—whether inspection, stacking, packaging, or further processing.

Advantages

Enhanced product quality: Rapid, even cooling prevents coating defects such as orange peel, pinholes, and thermal cracking.
Increased productivity: Eliminates waiting time for natural cooling, enabling continuous, high-speed production.
Energy efficiency: Optimized airflow design reduces power consumption compared to traditional cooling methods.
Low maintenance: Durable materials and simple construction minimize wear and simplify service.
Versatile integration: Easily connects with glass washing machines, roller coaters, leveling tunnels, and drying ovens to form a complete automated production line.

Operation & Maintenance Tips

Item	Recommendation
Pre-start inspection	Check chain tension and belt alignment to avoid tracking deviation.
Regular cleaning	Clean mesh belt gaps and fan filters periodically to prevent clogging that reduces cooling efficiency.
Temperature monitoring	Ensure operating temperature does not exceed material limits; monitor for thermal deformation under high-temperature conditions.
Lubrication	Grease drive bearings and chain components at scheduled intervals.
Wear inspection	Regularly check steel belt corrosion, chain wear, and fan blade condition; replace worn parts promptly.
Professional servicing	As a customized piece of equipment, adjustments and major maintenance should be performed by qualified technicians.

Why Choose Senren Air Cooling Conveyors?

With over 20 years of experience in intelligent coating and drying solutions, Senren Machinery designs and manufactures air cooling conveyors that integrate seamlessly with complete glass coating production lines. Our equipment is built to the highest quality standards, backed by ISO 9001 certification and CE compliance, and trusted by industry leaders including BYD, Bern Optics, Lens Technology, and CSG Group.

Whether you need a stand-alone cooling conveyor or a fully integrated coating-drying-cooling line, Senren provides customized solutions tailored to your specific production requirements.
