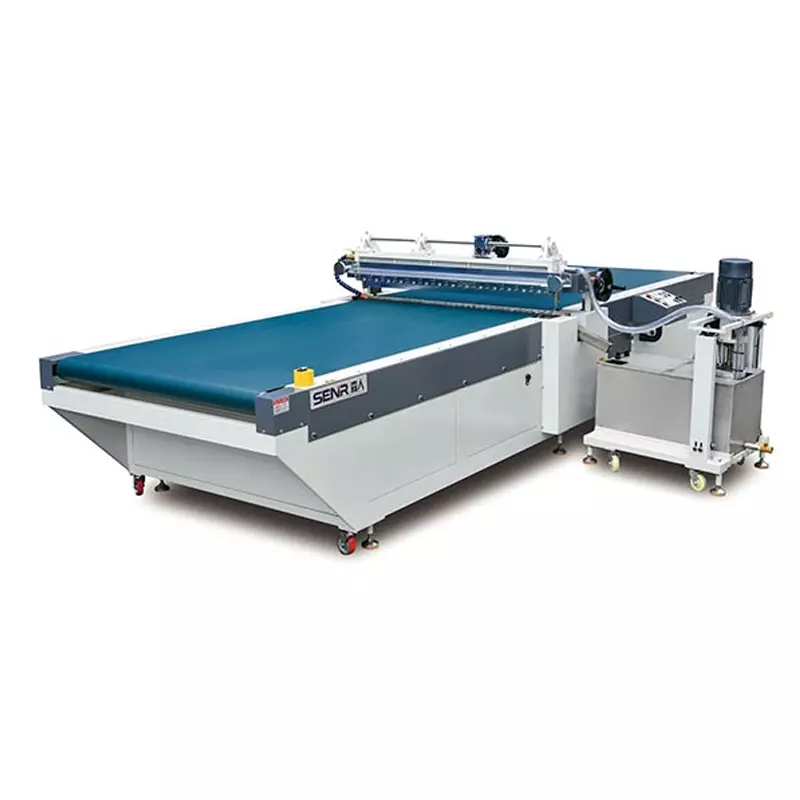

Curtain Coating Machine

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Overview

The Curtain Coating Machine, also known as a curtain coater or flow coater, is an advanced industrial coating system that applies a continuous, uniform curtain of liquid coating material onto flat workpieces as they pass beneath on a conveyor belt. This technology enables high-speed, high-efficiency coating with exceptional film thickness uniformity and minimal material waste-2.

Designed for seamless integration into automated production lines, the curtain coater delivers a flawless, pinhole-free finish on a wide range of flat substrates, making it an indispensable solution for manufacturers seeking superior surface quality and operational efficiency.

Working Principle

The curtain coating process operates on a simple yet highly effective principle:

Coating Circulation – Coating material is pumped from a storage tank to the curtain head.
Curtain Formation – The liquid flows through a precision-machined slot or between adjustable blades, forming a free-falling, continuous "curtain" or "veil" of coating.
Substrate Conveying – Flat workpieces are transported beneath this curtain on a conveyor belt at a controlled speed.
Coating Application – As the workpiece passes through the falling curtain, the coating material uniformly transfers onto the surface.
Recycling – Excess coating that does not adhere to the workpiece is collected in a recovery trough and recirculated back to the storage tank for reuse.

The coating thickness is determined by the conveyor speed, the flow rate of the coating pump, and the width of the curtain slot, all of which are precisely controllable.

Applications

The Curtain Coating Machine is widely used for topcoat and basecoat applications across diverse industries and materials:

Industry	Applications
Furniture & Wood Products	Panel furniture, solid wood flooring, engineered wood,橱柜 boards, decorative panels, MDF, plywood
Building Materials	Fiber cement boards, magnesium oxide boards, calcium silicate boards, decorative laminates
Glass	Flat glass, architectural glass, decorative glass
Composites	Polymer composite panels, fiber-reinforced boards
Other Flat Substrates	Cork, plastic materials, 3D-printed ceramic tiles

Key Features & Advantages

Feature	Benefit
Exceptional Coating Uniformity	The curtain coating process delivers a perfectly smooth, consistent film thickness across the entire workpiece surface, free from streaks or orange-peel effects
High Production Efficiency	Conveyor speeds can reach up to 100 m/min, making the curtain coater one of the highest-output coating machines available
Minimal Material Waste	Integrated paint recycling systems collect and recirculate excess coating, significantly reducing material consumption and operating costs
Precision Thickness Control	Coating film thickness can be controlled as low as 0.07mm (70 microns), with precision adjustment capabilities down to 0.05mm
Versatile Coating Compatibility	Suitable for virtually all types of liquid coatings, including UV, water-based, PU, NC, polyester (PE), epoxy, and paints containing abrasion-resistant additives like aluminum oxide or glass microspheres
Advanced Bubble Elimination	Patented de-foaming systems—including spiral impeller pumps, anti-foam filter devices, and buffer return systems—effectively prevent bubbles from entering the coating curtain, ensuring a defect-free finish
Precise Temperature Control	Equipped with electric constant-temperature double-layer stainless steel tanks (with thermal oil circulation) to maintain stable coating temperature and viscosity for consistent film thickness
Easy Cleaning & Maintenance	Modular, sliding-head design allows the coating head to be pulled out for fast, thorough cleaning, reducing downtime and solvent consumption
User-Friendly Operation	Frequency-controlled conveyor speed and isolated, enclosed operation ensure simple control, stable performance, and improved operator safety
Flexible Configurations	Available with single-head or dual-head designs; dual-head configurations enable "wet-on-wet" application of two-component polyester coatings

Technical Specifications (Typical Models)

Parameter	Specification
Effective Processing Width	620mm / 920mm / 1300mm / 1320mm (optional)
Effective Processing Thickness	2 – 80mm
Minimum Processing Length	300mm
Conveyor Speed	0 – 60 m/min (or up to 100 m/min, adjustable via inverter)
Minimum Coating Thickness	0.07mm (70 microns)
Coating Types	UV, water-based, PU, NC, PE, epoxy resins, and more
Power Supply	380V / 50Hz, 3-phase
Head Configuration	Single-head or dual-head

Optional Models

Model	Effective Width	Typical Applications
RD630	630mm	Small-format panels, furniture components
RD1000	1000mm	Standard furniture, decorative panels
RD1300	1300mm	Large-format panels, building materials
Dual-Head Model	Customizable	Two-component PU/PE coatings, "wet-on-wet" application

Limitations (For Customer Reference)

Flat Substrates Only – Curtain coating is designed exclusively for flat or slightly raised surfaces; it cannot coat vertical surfaces, complex shapes, or irregular objects.
Not Ideal for Small Batches – Frequent paint changes require thorough cleaning of the circulation system, making it less suitable for multi-variety, small-batch production.
Relatively Thicker Films – Single-pass film thickness is generally higher than some other coating methods; not ideal for ultra-thin layer applications.

Summary

The Curtain Coating Machine represents the gold standard for high-speed, high-quality flat-surface coating. Combining exceptional film uniformity, minimal material waste, and production speeds of up to 100 m/min, it delivers unmatched efficiency and surface finish quality. Whether applied to wood, glass, composites, or building materials, the curtain coater is a versatile, reliable, and cost-effective solution for manufacturers seeking to elevate their finishing operations to the next level.
