Product Features

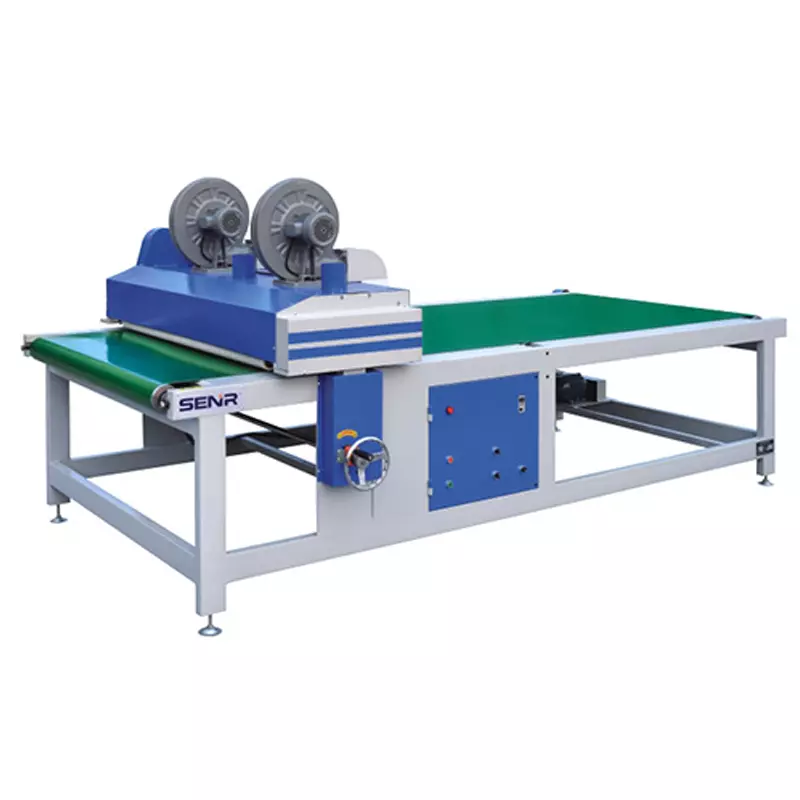

Automatically remove dust residues on the surface of boards to improve the coating quality of flooring panels. Equipped with dual dust‑removal bristle rollers and high‑power blowers for superior dust‑cleaning performance. Imported anti‑slip conveyor belt enhances friction with workpieces, effectively preventing short flooring boards from slipping and malfunctioning during transportation. Widely installed for dust removal before curtain coaters or after sanding machines in board coating production lines. The bristle rollers come with a self‑cleaning function to deliver more stable and outstanding dust‑removal results.
Technical Parameters
| Model |
620 |
920 |
1320 |
| Working Width |
620mm |
920mm |
1320mm |
| Working Thickness |
2‑80mm |
2‑80mm |
2‑80mm |
| Minimum Working Length |
300mm |
300mm |
300mm |
| Feeding Speed |
5‑18m/min |
5‑18m/min |
5‑18m/min |
| Feeding Power |
0.75kw |
1.5kw |
1.5kw |
| Brush Roller Power |
0.75kw |
0.75kw |
1.5kw |
| Overall Dimensions (L×W×H) |
1500×1750×1400mm |
1500×2100×1400mm |
1500×2450×1400mm |
| Total Power |
2.05kw |
2.60kw |
4.10kw |
| Machine Weight |
700kg |
900kg |
1100kg |
