Overview

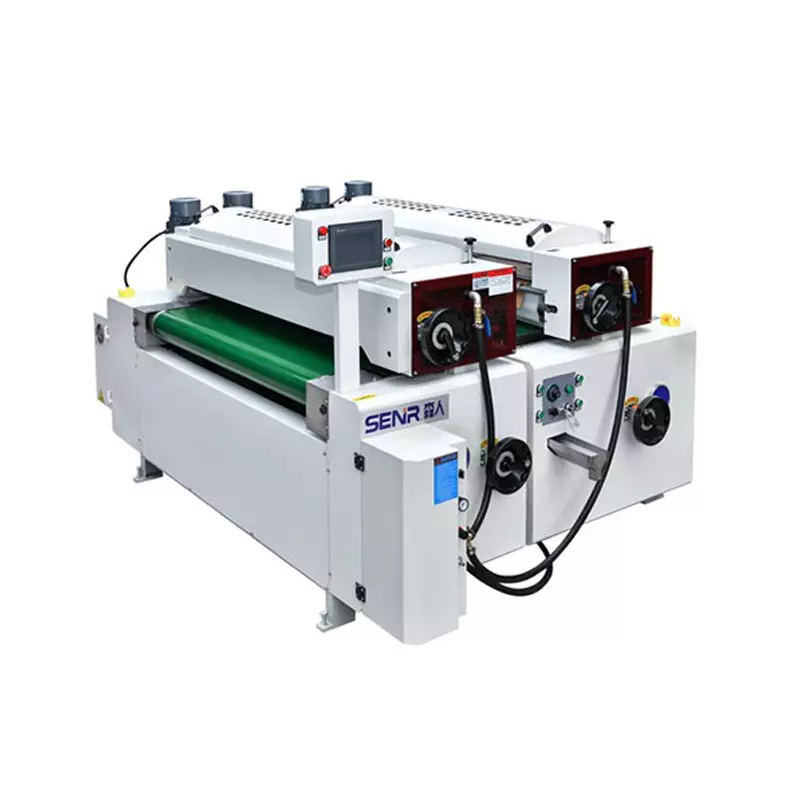

The Double-Roller Coating Machine is a high-precision, versatile coating system designed for applying uniform coatings onto flat substrates. Utilizing a two-roller reverse coating mechanism, this machine delivers exceptional film thickness control and finish quality, making it an essential solution for manufacturers across furniture, building materials, electronics, and decorative industries.
The system operates on a simple yet effective principle: a distribution roller evenly transfers coating material onto the applicator roller (rubber roller or laser-engraved roller), which then applies a uniform layer onto the product surface.With independent motor controls and precision adjustment mechanisms, the Double-Roller Coating Machine achieves coating accuracy up to 0.01mm, ensuring consistent, high-quality finishes with minimal waste.
Working Principle
The Double-Roller Coating Machine employs a two-roller reverse coating technology. The coating material is delivered to the distribution roller, which evenly spreads the material across its surface.-The material is then transferred to the applicator roller (coating roller), which rotates in the opposite direction to the workpiece feed. This counter-directional rotation ensures precise film thickness control and eliminates coating defects such as streaks or uneven application.
The coating thickness is precisely controlled through multiple adjustment mechanisms:
-
Roller Gap Adjustment: Micrometer adjustments on both sides allow fine-tuning of the gap between rollers
-
Independent Speed Control: Each roller is driven by individual inverters, enabling precise speed ratio adjustments
-
Scraper/Doctor Blade System: Equipped with precision scrapers (stainless steel or PU) to meter excess coating material
-
Thickness Setting Device: Automatically adjusts roller pressure based on product thickness; automatic stop protection prevents damage when workpieces exceed preset thickness
The coated workpiece then proceeds to subsequent drying or curing stages, completing the inline production process.
Applications
The Double-Roller Coating Machine is widely used across multiple industries for applying primers, topcoats, and functional coatings on flat substrates:
The machine is compatible with a wide range of coating materials, including UV coatings, PU coatings, NC coatings, PE coatings, water-based paints, and solvent-based paints.Coating materials can be recycled, minimizing waste and reducing operational costs.
Key Features & Benefits
Technical Specifications (Reference)
Note: Specifications may vary by model and configuration. Please consult our sales team for detailed specifications tailored to your specific requirements.
Summary
The Double-Roller Coating Machine is a reliable, high-performance coating solution that delivers exceptional finish quality, precise thickness control, and versatile material compatibility. Its robust construction, independent roller control system, and user-friendly PLC interface make it the ideal choice for manufacturers seeking to optimize their coating processes while reducing waste and operational costs.
Whether you are producing furniture, building materials, decorative panels, or electronic components, this machine provides the precision, efficiency, and flexibility you need to meet demanding production requirements.
