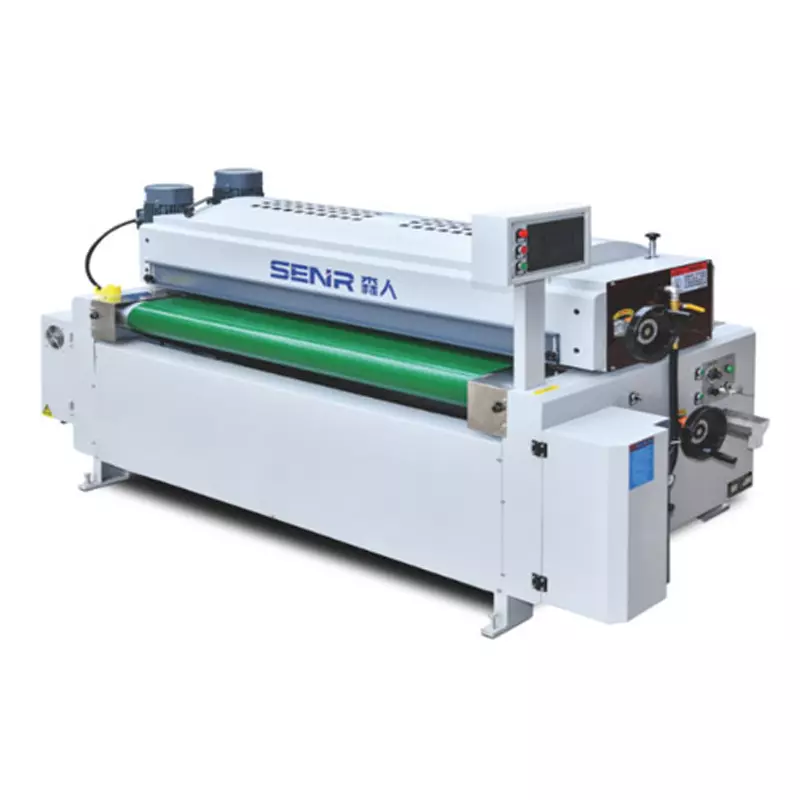

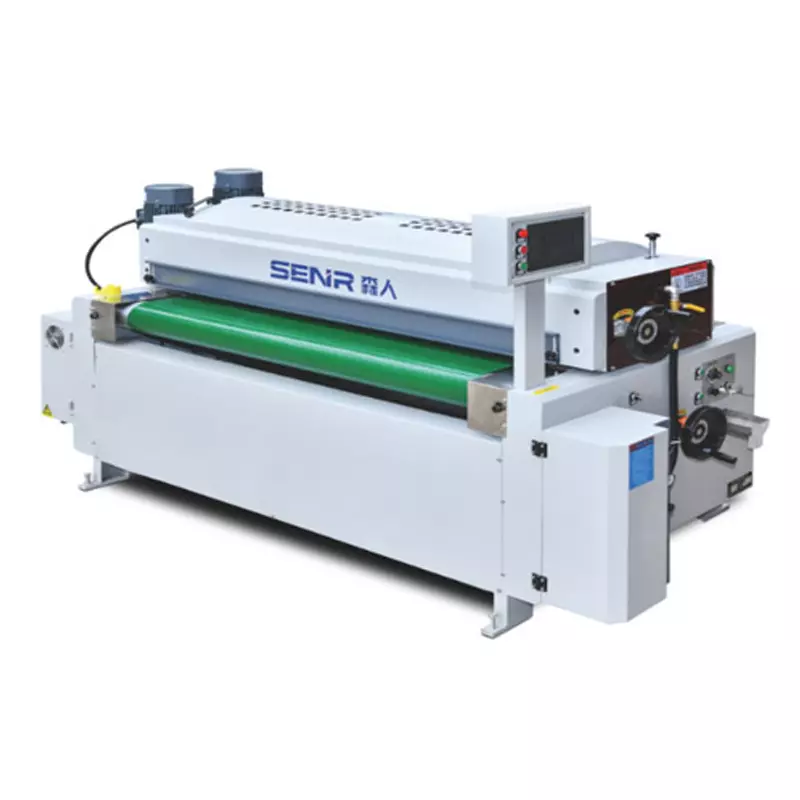

Single Roll Coater

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Application

This machine is suitable for furniture, wood doors, cabinets, flooring, glass, metal, plastics, polymer composite materials, inorganic materials and other flat plate and some of the modeling products for paint.

Working principle

Distributing wheel makes the coating evenly distributed on the coating wheel (rubber roller or laser wheel). The coating roller (rubber roller or laser wheel) will uniformly paint the roller to the surface of the product.

Technical Parameters

Model	SR‑R1P‑620 SR‑R1L‑620	SR‑R1P‑920 SR‑R1L‑920	SR‑R1P‑1320 SR‑R1L‑1320	SR‑R1P‑1650 SR‑R1L‑1650
Working width (mm)	620	920	1320	1650
Working thickness (mm)	2‑80	2‑80	2‑80	2‑80
Minimum working length (mm)	300	300	300	300
Feeding speed (m/min)	0‑20	0‑20	0‑20	0‑20
Feeding Power (kW)	0.75	0.75	1.5	0.75
Coater Roller Power (kW)	0.75	0.75	1.5	0.75
Equalizing Roller Power (kW)	0.55	0.75	0.75	0.75
Heating Power (kW)	3	3	3	3
Dimensions (L×W×H)	1000×1850×1700	1000×2150×1700	1000×2450×1700	1000×2750×1700
Power Supply (V/Hz)	380/50	380/50	380/50	380/50
Paint Type	UV / Water‑based / PU / NC / PE	UV / Water‑based / PU / NC / PE	UV / Water‑based / PU / NC / PE	UV / Water‑based / PU / NC / PE
