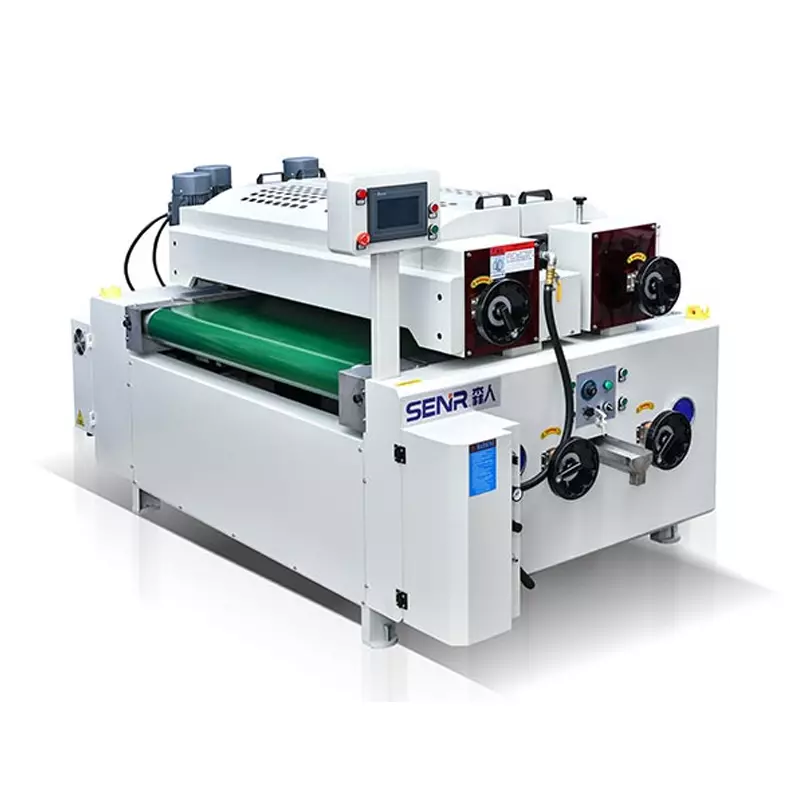

Putty Filling Machine

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Application

This machine is suitable for the surface putty filling of various flat plates such as furniture, wooden door, floor, wooden plate, MDF plate, inorganic material plate, etc. with very thick or uneven tubular fibers.

Working principle

Uniform wheels are used to evenly distribute the putty on the coating wheel, and the putty roller is evenly coated on the surface of the product by the coating wheel. The makeshift wheel scrapes away excess putty and recycles it.

Technical Parameters

Model	SR‑R2BP‑620	SR‑R2BP‑920	SR‑R2BP‑1320
Working width (mm)	620	920	1320
Working thickness (mm)	2‑80	2‑80	2‑80
Minimum working length (mm)	300	300	300
Feeding speed (m/min)	0‑20	0‑20	0‑20
Feeding Power (kW)	0.75	0.75	1.5
Coater Roller Power (kW)	0.75	0.75	1.5
Equalizing Roller Power (kW)	0.55	0.75	0.75
Heating Power (kW)	3	3	3
Dimensions (L×W×H)	2200×1850×1700	2200×2150×1700	2200×2450×1700
Power Supply (V/Hz)	380/50	380/50	380/50
Paint Type	UV / Water‑based	UV / Water‑based	UV / Water‑based
