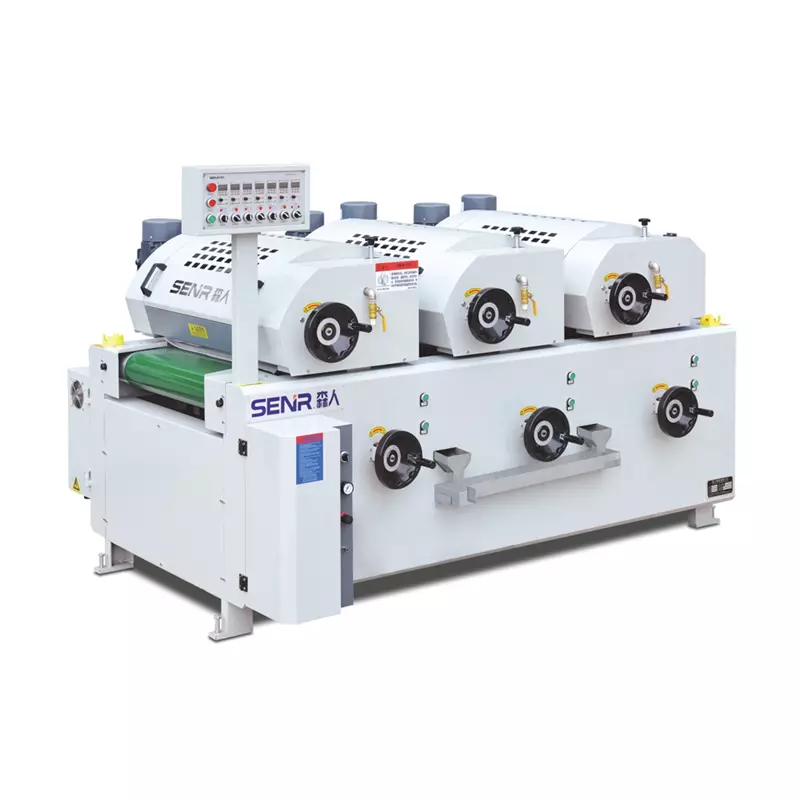

Three‑Roll Coating Machine

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Application

This machine is suitable for furniture, wood doors, cabinets, flooring, glass, metal, plastic, polymer composite board, inorganic material board and other flat plate and some styling products for painting.

Working principle

The uniform cloth wheel distributes the paint evenly on the coating wheel, and the paint roller uniformly applies the paint to the surface of the product.

Technical Parameters

Model	SR‑R3P‑620	SR‑R3P‑920	SR‑R3P‑1320
Working width (mm)	620	920	1320
Working thickness (mm)	2‑80	2‑80	2‑80
Minimum working length (mm)	300	300	300
Feeding speed (m/min)	0‑20	0‑20	0‑20
Feeding Power (kW)	0.75	0.75	1.5
Coater Roller Power (kW)	0.75	0.75	1.5
Equalizing Roller Power (kW)	0.55	0.75	0.75
Heating Power (kW)	3	3	3
Dimensions (L×W×H)	2300×1850×1700	2300×2150×1700	2300×2450×1700
Power Supply (V/Hz)	380/50	380/50	380/50
Paint Type	UV / Water‑based / PU / NC / PE	UV / Water‑based / PU / NC / PE	UV / Water‑based / PU / NC / PE
