Product Overview

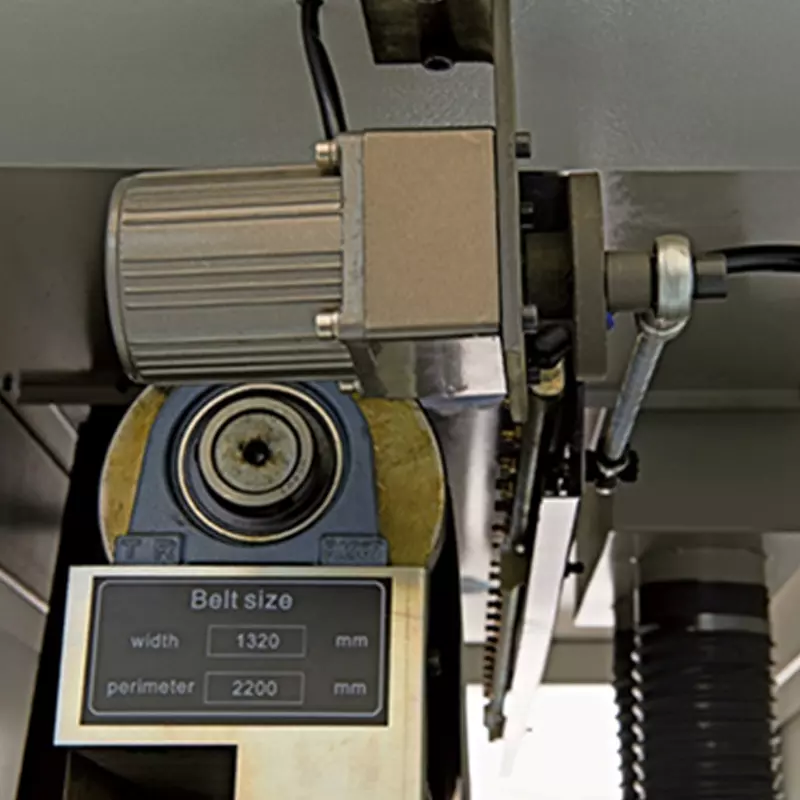

The Motor-Controlled Oscillating Sanding Frame with Air Blowing System is a precision sanding module designed for wide belt sanders and profile sanding machines. It integrates an electric motor-driven oscillation mechanism with an automated air jet dust removal system, delivering superior sanding quality while extending abrasive belt life.
Core Features
1. Motor-Driven Oscillation
-
Dedicated oscillation motor (typically 25W–40W) provides consistent reciprocating motion of the sanding frame
-
Oscillation ensures full coverage within the sanding belt's range, enabling cross-directional abrasive action for optimal surface finish
-
Reduces visual scratch patterns and extends abrasive belt service life
2. Automatic Air Jet Dust Removal
-
Each sanding unit is equipped with an electric motor-controlled blowing system positioned at the rear upper side of the sanding frame
-
High-pressure air jets continuously clean dust and debris from the sanding belt surface during operation-
-
Prevents dust accumulation that causes uneven sanding and surface defects
3. Precise Control System
-
Oscillation frequency and amplitude can be regulated via Variable Frequency Drive (VFD) or Programmable Logic Controller (PLC) integration
-
Equipped with photoelectric sensors and limit switches for stable, reliable oscillation control
-
Synchronized with main sanding motor start-up sequence for safe operation
Technical Specifications
Key Advantages
-
Enhanced Sanding Quality – Oscillating motion eliminates linear scratch patterns, producing a uniform, high-quality surface finish
-
Extended Belt Life – The air blowing system continuously removes embedded dust particles that accelerate abrasive wear, significantly prolonging belt service life
-
Reduced Maintenance – Automated dust cleaning minimizes manual intervention and prevents clogging
-
Energy Efficient – Low-power oscillation motor (25W–40W) consumes minimal energy while delivering consistent performance
-
Reliable Operation – Industrial-grade sensors and precision-engineered oscillation mechanism ensure stable, fault-resistant performance
Applications
This system is widely used in:
-
Wide Belt Sanders – for wood panel and furniture sanding
-
Profile Edge Sanders – for shaped workpiece edge finishing
-
Primer Sanding Machines – for surface preparation before coating
-
Automated Production Lines – integrates seamlessly with conveying systems for continuous operation
Why Choose Our System
Our Motor-Controlled Oscillating Sanding Frame with Air Blowing System is engineered for precision, durability, and low maintenance. The combination of motor-driven oscillation and automated air jet dust removal ensures consistent sanding quality, reduces downtime, and lowers operating costs – making it the ideal choice for demanding industrial sanding applications.
