Overview

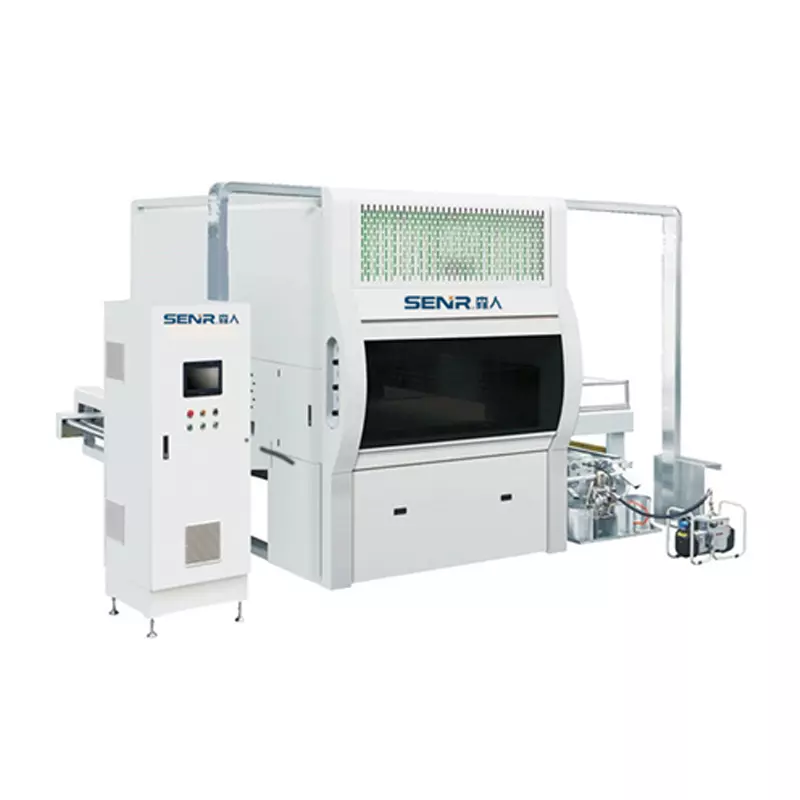

The Automatic Reciprocating Spray Painting Machine is a fully automated coating device designed to replace manual spraying with precision, efficiency, and consistency. Driven by servo motors, guide rails, and transmission systems, the machine enables rapid reciprocating motion in vertical (and optionally horizontal) directions. Spray guns are mounted on a fixed bracket at the end of the reciprocating mechanism, capable of accommodating multiple guns. During operation, the spray guns move up and down according to pre-programmed PLC logic, delivering precise, fast, and consistent coating with uniform film thickness.
The machine adopts fully digital positioning programming and computerized operation, capable of storing multiple process recipes for quick changeover. It is widely used for automatic spraying of paint, powder coating, oil, and adhesive on various workpiece surfaces.
Working Principle
Workpieces are placed on the conveyor system or rotary worktables and transported into the spraying zone. The reciprocating mechanism, driven by a servo motor and precision guide rails, drives the spray guns to move in a programmed reciprocating pattern across the workpiece surface. The spray guns atomize and apply the coating material evenly according to preset parameters.
The reciprocating motion is controlled by an AC servo drive system paired with a PLC and touchscreen HMI, ensuring accurate trajectory, rapid response, and excellent repeatability. Speed and stroke can be adjusted according to workpiece dimensions and coating process requirements. The system supports continuous and step-by-step spraying on both flat and vertical surfaces, with multi-axis coordinated motion enabling multi-surface coating.
Applications
The Automatic Reciprocating Spray Painting Machine is widely used for surface coating of various workpieces across multiple industries:
The system can handle a wide range of coatings including PU, AC, NC, UV, water-based, and solvent-based paints.
Key Features & Benefits
Technical Specifications (Reference)
Summary
The Automatic Reciprocating Spray Painting Machine is a reliable, high-performance automated spraying solution that delivers consistent coating quality, significant labor savings, and enhanced production efficiency-. Its robust construction, flexible configurability, and seamless integration with upstream and downstream equipment make it the ideal choice for manufacturers in electronics, furniture, wood, glass, metal, and building materials industries seeking to optimize their finishing processes while reducing operational costs and improving product quality.
