Automatic Linear Spraying Machine

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Overview

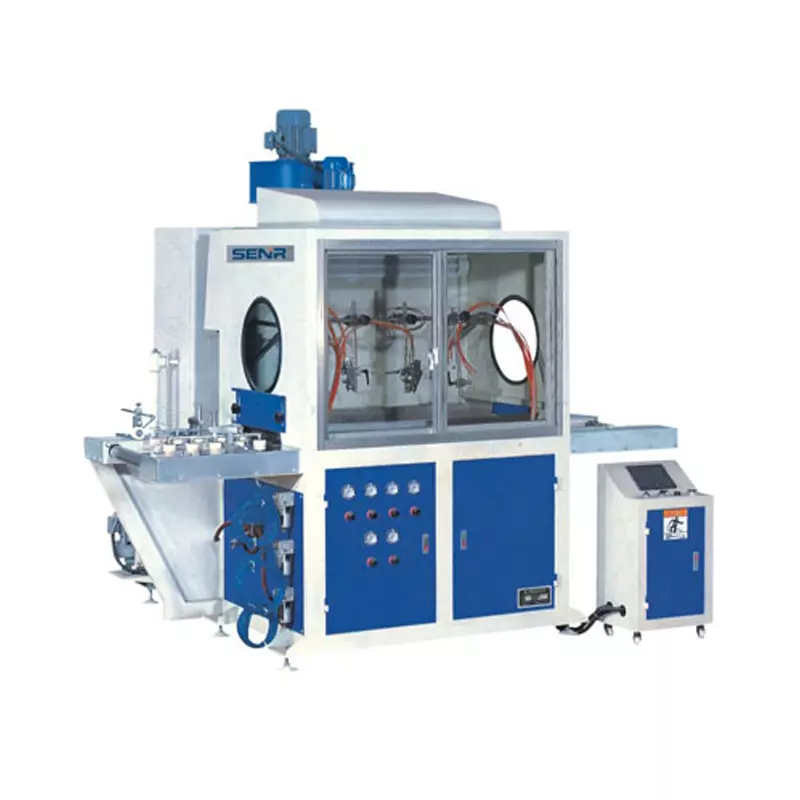

The Automatic Linear Spraying Machine is a fully automated coating equipment specifically developed for the surface spraying of elongated, linear workpieces. Designed to address the challenges of finishing long, narrow profiles, this machine delivers high automation, uniform coating coverage, precise film thickness control, and exceptional production efficiency, offering excellent cost-performance ratio.

The machine is capable of applying a wide range of coatings, including UV, PU, NC, water-based, and other paints. It can be seamlessly integrated with drying systems to achieve a "spray-and-dry" effect in a single pass.

Applications

The Automatic Linear Spraying Machine is widely used for continuous, automated spraying of linear workpieces across various industries:

Application Field	Typical Workpieces
Furniture Manufacturing	Door frames, cabinet doors, mouldings, skirting boards, baseboards, picture frames, tongue-and-groove panels, furniture components
Building Materials	Architectural trim, door jambs, window frames, decorative lines, PVC profiles, plastic-steel profiles
Flooring	Wood flooring, engineered wood strips
Window Coverings	Blinds, curtain rods, plantation shutters
Composites & Plastics	WPC (wood-plastic composite) profiles, PVC extrusions

The machine is compatible with a broad range of substrates, including solid wood, MDF, HDF, particleboard, pine, PVC, WPC, and even aluminum.

Working Principle

Workpieces are continuously fed into the machine via a belt conveyor system. As the linear profiles pass through the enclosed spraying chamber, an automatic detection system identifies the workpiece dimensions. The PLC-controlled system then triggers the spray guns in sequence as the moulding passes through, precisely controlling the spraying timing and parameters.

The spray guns, mounted on a linear guide rail system and driven by servo motors, perform linear reciprocating motion to simulate manual spraying actions. Coatings are atomized through high-pressure pumps and uniformly applied to the top and side surfaces of the workpiece in a single pass-. After spraying, workpieces can proceed directly to a curing or drying oven for immediate finishing.

Key Features & Benefits

Feature	Benefit
High Automation & PLC Control	PLC-controlled with intuitive HMI interface; automatic workpiece detection triggers precise spraying timing, minimizing manual intervention and operator dependency
Precision Servo-Driven Reciprocating System	Servo motor-driven linear guide rails ensure accurate, stable reciprocating motion, delivering consistent film thickness and eliminating common manual defects like runs or dry spots
Multi-Gun Configuration	Equipped with 2 to 8 automatic spray guns (imported optional) with adjustable nozzle diameters (0.8mm – 1.3mm); each gun can operate independently
Dual Air Supply Control	Dual air source system separates control air and pressure air, effectively preventing air bubbles in the coating caused by insufficient air pressure
Paint & Cost Savings	Computer detection system combined with high-efficiency spray guns significantly reduces paint consumption; optional paint recovery device with electrostatic adsorption technology achieves over 85% overspray recovery rate
Enclosed Spray Booth & Clean Environment	Fully enclosed spray chamber with positive-pressure air supply and double filtration prevents dust and impurities from entering, ensuring high surface quality; water-curtain filtration and centrifugal fan effectively treat paint mist to meet environmental standards
Broad Paint Compatibility	Compatible with UV, PU, NC, water-based, and acid-curing paints, offering flexibility for various finishing requirements
Convenient Paint Supply & Cleaning	External pressure tank paint supply system with circulating cleaning system enables fast and convenient color changes and system cleaning
Stable Conveying Speed	Variable-speed conveyor with stable, adjustable speed (0 – 50 m/min) ensures uniform, consistent spraying results
Robust Construction	Stainless steel body options available for corrosion resistance; durable design ensures long service life and low maintenance

Technical Specifications (Reference)

Parameter	Specification
Working Width	10 – 400mm (up to 600mm on select models)
Working Thickness	10 – 100mm (3 – 80mm on select models)
Minimum Working Length	550 – 700mm
Maximum Working Length	Up to 6000mm (unlimited on some models)
Conveying / Feeding Speed	0 – 50 m/min (adjustable via inverter)
Number of Spray Guns	2 – 8 pcs (configurable)
Working Air Pressure	0.5 – 0.8 MPa
Air Consumption	Approx. 1500 L/min
Exhaust Air Volume	3,500 – 12,000 m³/h
Total Power	2.25 – 3.75 kW
Machine Weight	1,200 – 1,800 kg
Overall Dimensions (L×W×H)	Approx. 3,200 – 3,500 × 1,550 – 1,900 × 2,000 – 2,800 mm

Summary

The Automatic Linear Spraying Machine represents a reliable, high-performance automated coating solution tailored specifically for linear profiles and elongated workpieces. Its precision servo-driven reciprocating system, multi-gun configurability, and intelligent PLC control deliver consistent coating quality, significant material savings, and dramatically improved production throughput compared to manual methods. With broad paint compatibility, robust construction, and seamless integration with upstream and downstream drying equipment, this machine is the ideal choice for manufacturers in furniture, building materials, flooring, and composite industries seeking to optimize their finishing processes while reducing labor costs and material waste.
