Overview
The Electrostatic DISK Spray Coating Automatic Line is a high-efficiency, fully automated spraying system that utilizes electrostatic adsorption technology to achieve superior coating quality with exceptional material savings. The system employs a high-speed rotating disk atomizer (commonly referred to as a "DISK" ) which, in combination with a high-voltage electrostatic generator, charges atomized paint particles and directs them toward grounded workpieces through electrostatic attraction.
This advanced coating technology delivers paint utilization rates of up to 95% or more, reducing paint consumption by 30%–60% compared to conventional manual spraying methods. The system is designed for continuous, in-line production, significantly improving efficiency, consistency, and cost-effectiveness.
Working Principle
The Electrostatic DISK Spray Coating system operates on the fundamental principle of electrostatic attraction: paint particles are given a negative electrical charge, while the workpiece is grounded (acting as the positive electrode). Opposite charges attract, causing the charged paint particles to be evenly drawn to the workpiece surface.
The process works as follows:
-
Atomization: A high-speed pneumatic motor drives the disk atomizer (also called spinning disk) at speeds up to 50,000–60,000 RPM. Paint is delivered to the center of the rotating disk and, under centrifugal force, spreads outward and is atomized into an extremely fine mist.
-
Charging: A high-voltage electrostatic generator (typically DC 20–120kV) applies a negative charge to the atomized paint particles as they leave the disk edge.
-
Deposition: The negatively charged paint mist is rapidly attracted to the grounded (positively charged) workpiece surface, depositing evenly with minimal overspray.
-

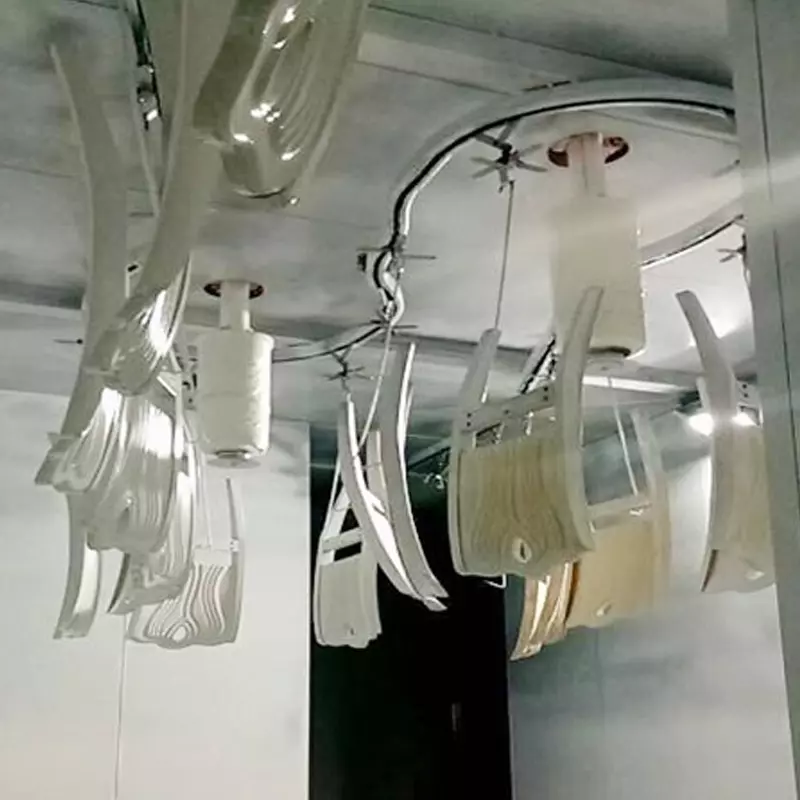

Reciprocating Coverage: The disk atomizer is mounted on a reciprocating mechanism that moves up and down, ensuring complete coverage of the workpiece surface.
This electrostatic process enables paint particles to "wrap around" edges and reach recessed areas that would be difficult to coat with conventional spray guns, resulting in superior coverage of complex-shaped workpieces.
Applications
The Electrostatic DISK Spray Coating Automatic Line is widely used across numerous industries for coating a variety of workpieces:
System Composition
A complete Electrostatic DISK Spray Coating Automatic Line typically consists of the following integrated components:
Key Features & Benefits
Technical Specifications (Reference)
Comparison: DISK Electrostatic vs. Conventional Spraying
Summary
The Electrostatic DISK Spray Coating Automatic Line represents a state-of-the-art solution for manufacturers seeking to achieve superior coating quality while significantly reducing paint consumption and labor costs. By leveraging advanced electrostatic adsorption technology and high-speed rotary atomization, this system delivers exceptional transfer efficiency (up to 95%), outstanding film uniformity, and the ability to coat complex geometries with minimal waste.
Fully automated and PLC-controlled, the system integrates seamlessly with upstream and downstream equipment to form a complete, continuous production line. Its robust construction, modular design, and use of premium imported components ensure long-term reliability, low maintenance, and consistent production quality. Whether for furniture, metal products, automotive parts, or electronics, the Electrostatic DISK Spray Coating Automatic Line is the ideal choice for manufacturers aiming to optimize their finishing processes, reduce operational costs, and meet increasingly stringent environmental standards.
