Product Overview

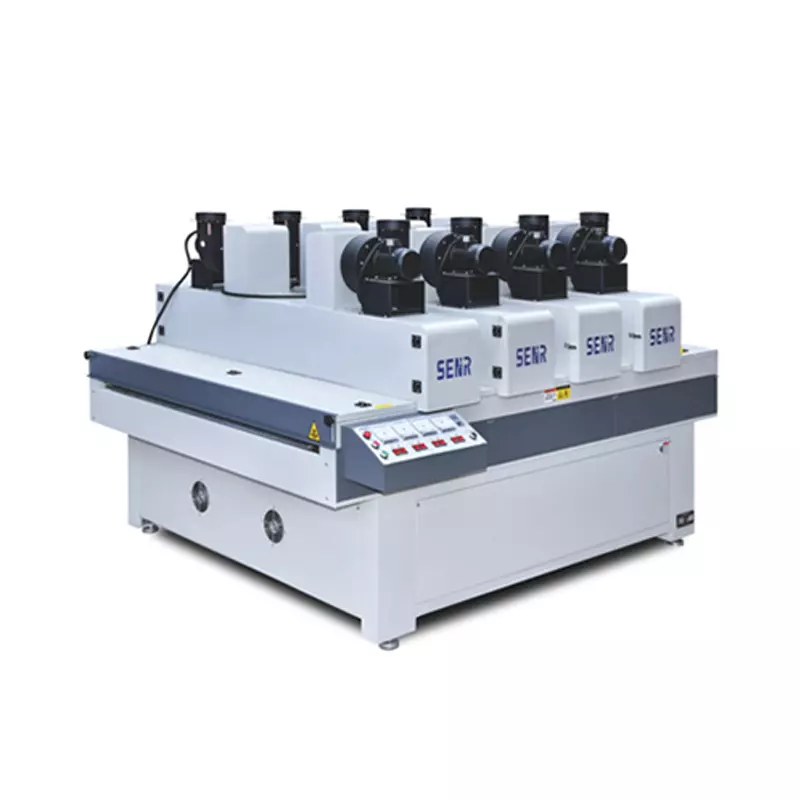

The Four-Lamp UV Dryer is a high-efficiency ultraviolet curing system designed for rapid drying of UV coatings on flat substrates. Equipped with four high-power UV lamps arranged for uniform irradiation, this dryer delivers instant curing of UV paints, inks, and coatings, significantly improving surface hardness and gloss while dramatically reducing production lead times.

Widely used in conjunction with roller coating lines, spray coating lines, and curtain coating systems, this machine is an essential component for automated coating production lines across multiple industries.

Working Principle

As UV-coated products are conveyed through the drying chamber, they are exposed to intense ultraviolet light emitted by the four strategically positioned UV lamps. This exposure triggers an instantaneous photochemical reaction in the UV coating, causing it to cross-link and solidify into a durable, glossy film within seconds. The result is a fully cured surface ready for subsequent processing or packaging, eliminating lengthy air-drying or heat-drying cycles.

Key Technical Advantages

• High-Efficiency Curing – Four UV lamps deliver superior irradiation intensity for rapid, thorough drying of UV coatings.

• Adjustable Lamp Output – The number of active lamps and irradiation intensity can be adjusted based on coating characteristics and desired finish effects.

• Premium Components – Equipped with imported high-mercury UV lamps and precision reflectors for optimal UV output and stability.

• Intelligent Control – PLC-based control system with user-friendly interface; lamps can operate at full or half power for energy savings.

• Advanced Cooling System – Independent cooling channels for each lamp group ensure stable operating temperatures and extend lamp service life.

• Durable Construction – Heavy-duty steel frame with corrosion-resistant finish ensures long-term reliability in demanding production environments.

Technical Specifications

Optional Models

Applications

The Four-Lamp UV Dryer is widely used for drying UV coatings on flat substrates including:

• Glass – Architectural glass, cover glass, automotive glass, photovoltaic glass, decorative glass

• Metal – Aluminum panels, steel sheets, metal nameplates

• Wood & Panels – Furniture panels, cabinet doors, engineered flooring, MDF, plywood

• Composites & Plastics – Acrylic, PC, PVC, ABS sheets

• Other Substrates – Ceramic tiles, paper, leather

Optional Configurations

• Mercury lamps / Gallium lamps / Iron lamps (for different UV coating types)

• Adjustable reflector angles for optimal irradiation positioning

• Bottom-mounted UV lamps for curing edges and recessed areas

• Customizable number of lamp heads (1–8 or more)

• Electronic power supply distribution for energy efficiency

Why Choose Senren Four-Lamp UV Dryer

• Instant Drying – UV coatings cure in 3–5 seconds, dramatically shortening production cycles

• Superior Finish Quality – Enhances surface hardness, scratch resistance, and gloss

• Energy Efficient – Lamp power can be adjusted to match production requirements, saving up to 40% energy

• Reliable & Durable – Built with high-quality components and robust construction for continuous industrial operation

• Low Maintenance – Modular lamp house design allows easy lamp replacement and inspection

• Environmentally Friendly – UV curing produces no VOCs, no ozone, and minimal waste

• Customizable – Available in multiple widths and configurations to suit specific production needs
