Overview

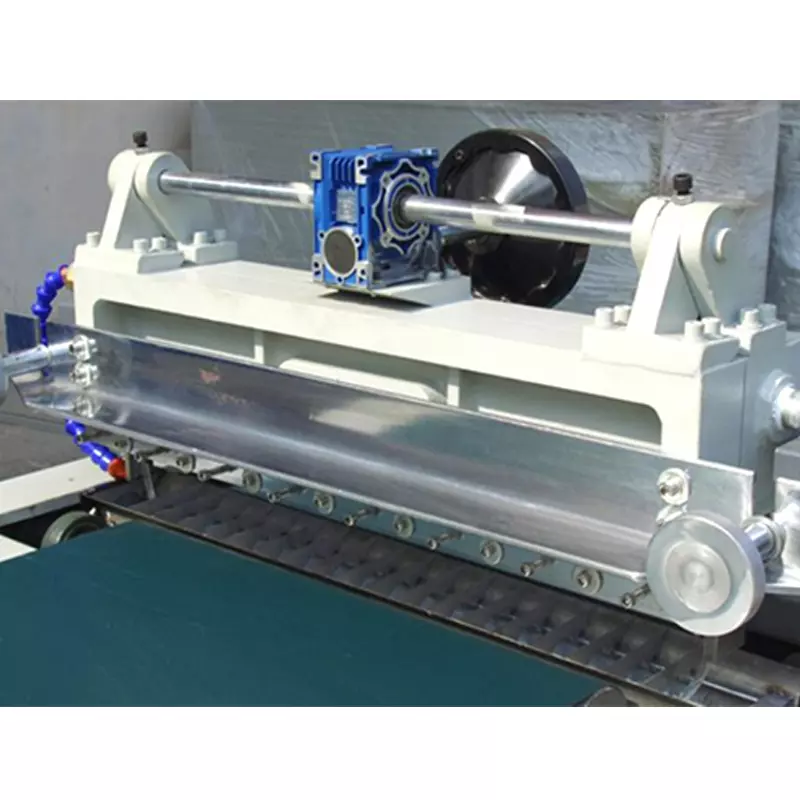

The Curtain Coating Head is the core component of a curtain coating machine (also known as a curtain coater or, an industrial coating device that applies a uniform liquid film onto flat substrates through a free-falling curtain of coating material. The coating is pumped into the inner cavity of the head and flows downward from a narrow precision gap, forming an even, continuous curtain that coats the workpiece surface as it passes underneath at a controlled speed.
Designed for high-efficiency, high-quality surface finishing, the curtain coating head is widely used for applying primers, topcoats, clear varnishes, and colored coatings onto various flat panels. Compared to roller coating, curtain coating achieves a thicker film in a single pass, making it particularly suitable for applications requiring high-gloss, mirror-like decorative finishes. The head supports a wide range of coating types, including UV varnish, nitrocellulose varnish, amino varnish, acrylic varnish, polyurethane varnish, water-based coatings, and nano-functional coatings.
Working Principle
The curtain coating head operates on a simple yet highly precise principle:
-
Coating Supply: Coating material is delivered by a transfer pump from a storage tank into the inner cavity of the curtain coating head.
-
Curtain Formation: The coating flows out through a narrow, precision-machined slit (the curtain nozzle or knife gap), forming a continuous, free-falling curtain of uniform thickness.
-
Substrate Coating: Flat workpieces are conveyed on a belt and pass through the falling curtain at a constant speed. The coating uniformly covers the entire surface in a single pass.
-
Coating Thickness Control: The film thickness can be precisely adjusted by regulating the pump flow rate, conveyor speed, and the gap of the curtain knife. The minimum achievable coating thickness can be as low as 0.06mm.
-
Coating Recovery: Excess coating that is not applied to the workpiece falls into a collection trough beneath the head and is filtered and recirculated back to the supply tank, minimizing waste and reducing material costs.
Key Features & Benefits
Applications
The curtain coating head is suitable for applying primers, topcoats, clear varnishes, and colored coatings onto a broad range of flat substrates:
Technical Specifications
Optional Models
Curtain Head Variations
Curtain coating heads are available in two primary configurations:
Summary
The Curtain Coating Head is a precision-engineered coating application component that delivers uniform, high-quality film coatings on flat substrates with exceptional efficiency. Its robust aluminum casting construction, precise curtain formation mechanism, and versatile compatibility with various coating types make it an indispensable component for modern finishing lines. Whether used in furniture manufacturing, glass processing, metal finishing, or building material production, the curtain coating head offers reliable performance, excellent finish quality, and cost-effective operation through efficient coating recovery and recirculation.
