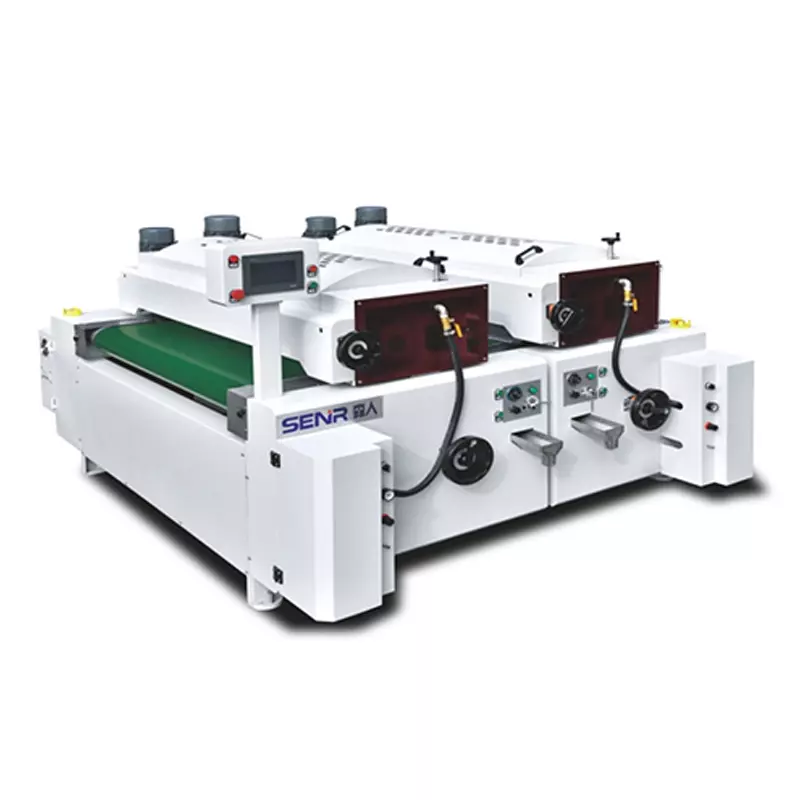

Double Roller Color Coater

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Application

This machine is suitable for furniture, wood doors, cabinets, flooring, polymer composite materials, inorganic materials, and other flat sheet and some styling products forcolorant coating.

Working principle

The uniform wheel makes the colorant evenly distributed on the sponge wheel, and the sponge roller uniformly applies the colorant to the surface of the product.

Technical Parameters

Model	SR‑R2H‑620	SR‑R2H‑920	SR‑R2H‑1320
Working width (mm)	620	920	1320
Working thickness (mm)	2‑80	2‑80	2‑80
Minimum working length (mm)	300	300	300
Feeding speed (m/min)	0‑20	0‑20	0‑20
Feeding Power (kW)	0.75	0.75	1.5
Coater Roller Power (kW)	0.75	0.75	1.5
Equalizing Roller Power (kW)	0.55	0.75	0.75
Heating Power (kW)	3	3	3
Dimensions (L×W×H)	1800×1850×1700	1800×2150×1700	1800×2450×1700
Power Supply (V/Hz)	380/50	380/50	380/50
Colorant Type	Water‑based / Oil‑based	Water‑based / Oil‑based	Water‑based / Oil‑based
