Overview

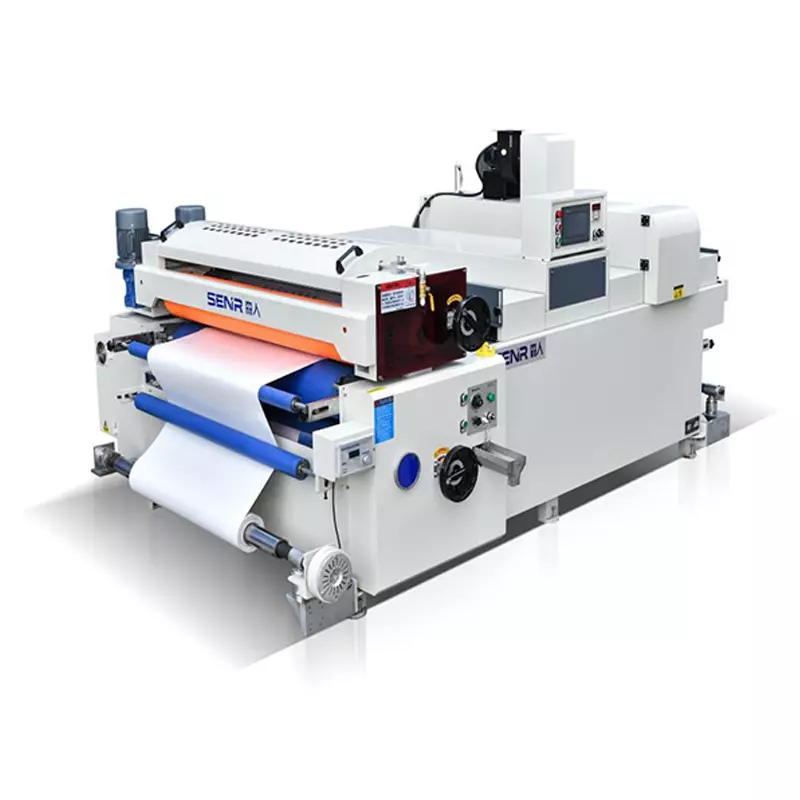

The Flexible Web Varnish Coating Machine is a high-efficiency roll-to-roll coating system specifically designed for applying UV varnish onto flexible rolled substrates. This advanced surface finishing solution enables manufacturers to protect and enhance inkjet-printed or plain flexible materials with a durable, high-gloss (or matte) UV coating, significantly improving weather resistance, scratch resistance, and overall product longevity.
Developed with precision roller coating technology, this machine applies a uniform layer of UV varnish onto continuous rolls of flexible substrates in a fully automated, inline process. The system integrates unwinding, coating, IR leveling, UV curing, and rewinding into a single streamlined production line. Compared to traditional cold laminating films, the UV coating process offers superior efficiency, lower material consumption, and greater flexibility in width and.
The machine is an ideal solution for manufacturers in the advertising, signage, packaging, and decorative materials industries seeking to produce high-quality, weather-resistant coated flexible webs with consistent finish and minimal waste.
Working Principle
The Flexible Web Varnish Coating Machine operates on a roll-to-roll precision coating mechanism. The complete process consists of the following stages:
-
Unwinding – The roll of printed or unprinted flexible substrate (PVC film, paper, etc.) is mounted on the unwinding station and fed into the coating zone at a controlled speed.
-
Coating Application – The substrate passes through the precision roller coating unit, where a uniform layer of UV varnish (weather-resistant or standard, glossy or matte) is applied onto the surface. The coating thickness is precisely controlled by adjusting the gap between the coating rollers.
-
IR Leveling – The coated substrate then enters the IR leveling section, where infrared heat promotes coating flow-out and leveling, ensuring a smooth, even surface before curing.
-
UV Curing – The leveled coating is immediately exposed to high-intensity UV light, triggering a photochemical cross-linking reaction that instantly hardens and cures the varnish into a durable solid film.
-
Rewinding – The fully cured, finished web is rewound into a roll for subsequent slitting, cutting, or direct use.
The entire process is automated and continuously operated, ensuring high production efficiency and consistent coating quality.
Applications
The Flexible Web Varnish Coating Machine is widely used for coating various flexible rolled substrates, with primary applications including:
The machine is compatible with UV varnishes in both glossy and matte finishes, as well as weather-resistant formulations for demanding outdoor applications.
Key Features & Benefits
Technical Specifications (Reference)
Note: Specifications may vary by model and configuration. Custom working widths and additional options are available upon request.
Typical Production Line Configuration
A complete flexible web UV varnish coating line typically consists of the following components:
-
Unwinding Station – Roll mounting and controlled feeding of substrate
-
Pre-Treatment Section (optional) – Corona treatment or dust removal for enhanced adhesion
-
Precision Roller Coating Unit – Application of UV varnish with adjustable thickness
-
IR Leveling Tunnel – Infrared heating for coating leveling and solvent evaporation
-
UV Curing Chamber – High-intensity UV lamps for instant curing
-
Rewinding Station – Automatic roll take-up of finished coated web
-
Control System – PLC with HMI touchscreen for centralized monitoring and control
Summary
The Flexible Web Varnish Coating Machine represents a state-of-the-art solution for applying protective and decorative UV varnish coatings onto continuous rolls of flexible substrates. By utilizing advanced roller coating technology and instant UV curing, it delivers exceptional weather resistance, superior surface finish, and significant cost savings compared to traditional cold laminating methods.
Whether you are producing outdoor advertising graphics, vehicle wraps, or decorative polymer panels, this machine provides the precision, efficiency, and reliability you need to meet demanding production requirements. With its robust construction, user-friendly controls, and environmentally friendly UV coating system, it is the ideal choice for manufacturers seeking to enhance their flexible web finishing capabilities while reducing material costs and environmental impact.
