Overview

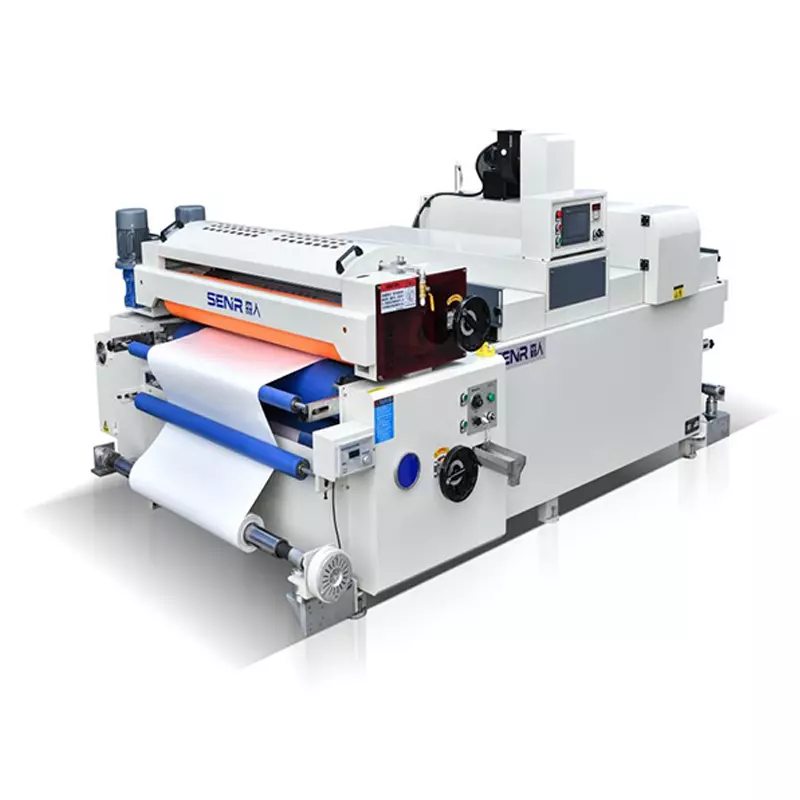

The Flexible Web/Coil Coating Machine is a high-efficiency, roll‑to‑roll coating system designed for continuous application of adhesives, paints, functional coatings, and UV varnishes onto flexible substrate materials.- It integrates unwinding, coating, leveling/drying, curing, and rewinding functions into a single production line, enabling high‑speed, automated processing of soft roll materials. The machine is an ideal solution for manufacturers seeking to achieve uniform, high‑quality coatings with minimal material waste and maximum production efficiency.
Unlike panel coating equipment that processes rigid sheets, this roll‑to‑roll system handles flexible webs in a continuous, uninterrupted process, significantly improving throughput and reducing labor costs.
Working Principle
The flexible web material (e.g., PVC film, PET film, paper, aluminum foil, or textile) is loaded onto the unwinding station and fed through the coating section at a controlled speed. The coating system applies a precise, uniform layer of coating material onto the substrate surface using one of several coating methods (e.g., roller coating, gravure coating, comma‑bar metering, or slot‑die coating). The coated web then passes through a leveling zone and a drying/curing section (hot air, IR, or UV, depending on coating type) to solidify the coating.- Finally, the finished material is precisely rewound onto a take‑up roll, ready for subsequent processing or final use.
Throughout the process, closed‑loop tension control systems and automatic edge‑guiding devices ensure stable web handling, preventing wrinkles, stretching, or misalignment.
Applications
The Flexible Web/Coil Coating Machine is widely used across multiple industries for coating a broad range of soft roll substrates:
Specific applications include:
-
Graphics & Advertising: UV coating on PVC advertising media, vehicle wrap films, outdoor signage, and billboard materials
-
Packaging Industry: Adhesive coating, heat‑seal coating, and barrier coating for flexible packaging films
-
Electronic Materials: Precision coating on PET films for flexible circuits, coverlay films, and insulation tapes
-
Industrial Tapes: Coating of pressure‑sensitive adhesives for tape manufacturing
-
Functional Films: Application of nano‑coatings, anti‑scratch, anti‑glare, or anti‑static functional layers
Key Features & Benefits
Typical System Configuration
A complete flexible web coating line typically consists of the following components:
-
Unwinding Station – With automatic tension control and splicer for continuous operation
-
Pre‑Treatment Section – Corona treatment or pre‑heating for improved coating adhesion (optional)
-
Coating Section – Coating head with precision metering system (gravure, comma‑bar, slot‑die, etc.)
-
Leveling Section – IR or hot‑air leveling for coating flow‑out
-
Drying/Curing Oven – Multi‑zone hot‑air, IR, or UV curing system with precise temperature control
-
Cooling Section – Forced cooling to stabilize the finished web
-
Rewinding Station – With automatic tension control and edge guiding for precise roll formation
-
Control System – PLC with HMI touchscreen for centralized monitoring and control
Technical Specifications (Reference)
Summary
The Flexible Web/Coil Coating Machine is a versatile, high‑performance roll‑to‑roll coating solution that delivers consistent coating quality, high production efficiency, and excellent process flexibility. With multiple coating methods, precise thickness control, and seamless integration of unwinding, coating, drying, and rewinding functions, it is the ideal choice for manufacturers in packaging, graphics, electronics, and industrial materials sectors seeking to optimize their coating processes while reducing material waste and operational costs.
