Overview
The Reciprocating Spray Coating Line is a high-efficiency, fully automated spraying system designed for uniform coating application on flat or panel‑shaped workpieces. This system integrates a reciprocating spray machine with a conveyor system, pre‑treatment units, drying/curing ovens, and an intelligent control system to form a complete production line-. It is an ideal solution for manufacturers seeking to replace manual spraying with automated, consistent, and high‑output coating processes.

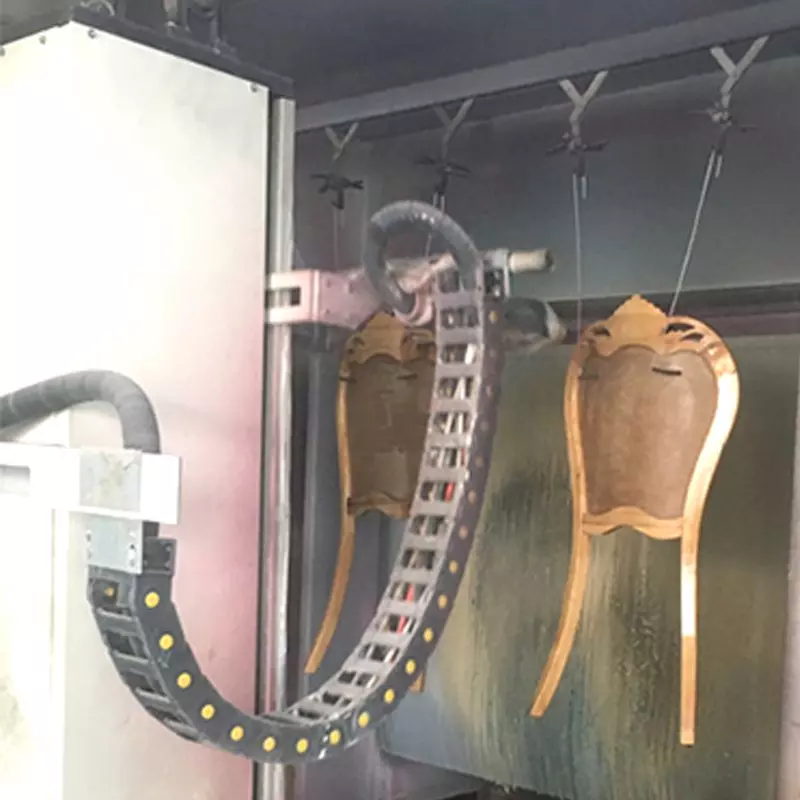

The reciprocating spray machine is an automatic coating device composed of servo motors, guide rails, and transmission systems that enable rapid up‑and‑down reciprocating motion. Spray guns are mounted on a fixed bracket at the end of the reciprocating mechanism (capable of accommodating multiple guns). During operation, the spray guns move up and down according to pre‑programmed PLC logic, delivering precise, fast, and consistent coating application with uniform film thickness.
Working Principle
Workpieces to be coated are placed onto the conveyor system, which transports them steadily into the spraying zone. Upon reaching the designated position, the reciprocating motion mechanism drives the spray guns to move vertically in a reciprocating pattern across the surface of the workpiece. The spray guns atomize and apply the coating material evenly according to preset parameters. After one pass is completed, the conveyor advances the workpiece, and the reciprocating cycle repeats until the entire surface is fully coated.
The reciprocating motion is driven by a servo motor and precision guide rail system, ensuring accurate trajectory, rapid response, and excellent repeatability. Speed and stroke can be adjusted according to workpiece dimensions and coating process requirements.
Applications
The Reciprocating Spray Coating Line is widely used across multiple industries for surface coating of flat or panel‑shaped products:
The system can handle water‑based, solvent‑based, UV, and PU coatings, making it highly versatile for different finishing requirements.
Key Features & Benefits
Typical System Configuration
A complete reciprocating spray coating line typically consists of the following components:
-
Loading/Unloading Area – Manual or automatic feeding and collection of workpieces
-
Pre‑Treatment Section – Dust cleaning system and pre‑heating unit to prepare workpiece surfaces
-
Spray Booth – Enclosed spraying chamber with the reciprocating spray machine, equipped with:
-
Reciprocating mechanism (servo motor + guide rails)
-
Spray guns (multiple, configurable)
-
Paint supply system (pumps, reservoirs, circulation)
-
Clean fresh air supply and exhaust ventilation
-
Leveling Section – IR leveling oven for coating flow-out and leveling
-
Curing Section – IR drying oven or UV curing system
-
Cooling Section – Forced cooling to stabilize finished workpieces
-
Control System – PLC with HMI touchscreen for centralized control and monitoring
Technical Specifications (Reference)
Summary
The Reciprocating Spray Coating Line represents a reliable, high‑performance automated spraying solution that delivers consistent coating quality, significant labor savings, and enhanced production efficiency. Its robust construction, flexible configurability, and seamless integration with upstream and downstream equipment make it the ideal choice for manufacturers in furniture, glass, metal, electronics, and building materials industries seeking to optimize their finishing processes while reducing operational costs and improving product quality.
