Robot Automatic Spray Painting Line

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Overview

The Robot Automatic Spray Painting Line is a fully automated, high-precision coating system designed for efficient and consistent spray application on a wide range of substrates. Integrating advanced six-axis robotic arms, PLC control systems, and intelligent conveying mechanisms, this production line replaces manual spraying operations to deliver superior finish quality, high transfer efficiency, and significant labor savings. It is an ideal solution for manufacturers seeking to optimize their painting processes while maintaining consistent quality and reducing operational costs.

Applications

This robotic spray painting line is widely used across various industries for coating flat and shaped workpieces, including:

Glass Products: Flat tempered glass, cover glass, automotive glass, architectural glass, decorative glass panels
Metal Products: Metal sheets, stainless steel panels, aluminum profiles, automotive body parts and components
Plastic Parts: Automotive interior/exterior trim, bumpers, instrument panels, electronic housings
Wood & Furniture: Panel furniture, wooden doors, cabinetry
Composites & Electronics: Polymer composite materials, PC panels, laptop casings, mobile device covers
Consumer Goods: Cosmetic packaging, glass bottles, plastic caps, watches, speakers

System Composition

A complete robot automatic spray painting line typically consists of the following integrated components:

Component	Function
Loading/Unloading Station	Manual or automatic workpiece loading and unloading
Pre-treatment Section	Automatic dust removal, electrostatic cleaning, pre-heating/dehumidifying

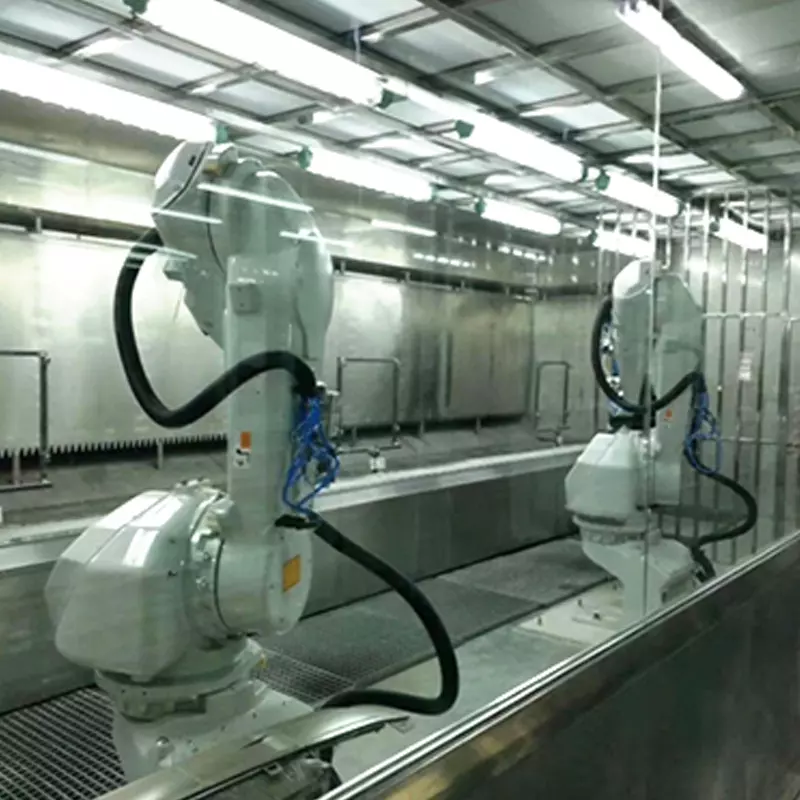

Robotic Spray Booth	Enclosed spray booth with explosion-proof six-axis spraying robot(s)
Paint Supply System	Centralized paint supply with circulation, color change valves, and precision flow control
Conveying System	Continuous conveyor (chain, belt, or roller type) for workpiece transport
Leveling Zone	Controlled environment for coating leveling before curing
Drying/Curing System	IR drying tunnel, UV curing oven, or combined systems
Cooling Section	Forced air cooling after curing
Exhaust & Filtration System	Paint mist exhaust, constant temperature/humidity air supply, waste gas/water treatment
Central Control System	PLC + touchscreen HMI for full-line monitoring and control

Working Principle

Workpieces are loaded onto the conveyor system and transported through a pre-treatment station for dust removal and surface cleaning. Upon entering the enclosed spray booth, the six-axis robotic arm—pre-programmed with optimized spraying trajectories—automatically applies coating materials to the workpiece surface-. The robot precisely controls spray angle, distance, speed, and paint flow rate to ensure uniform coverage even on complex geometries-. The coated workpieces then pass through a leveling zone, followed by an IR drying tunnel or UV curing oven for rapid film solidification-. Finally, the finished products are conveyed to the cooling section and unloaded.

Key Features & Benefits

Feature	Benefit
Six-Axis Robotic Arm	High flexibility with large working radius; capable of spraying both interior and exterior surfaces of complex-shaped workpieces
High Repeatability Precision	Repeat positioning accuracy up to ±0.05mm, ensuring identical spray trajectory, speed, and posture for every cycle
Explosion-Proof Design	ATEX-rated or intrinsically safe robot design ensures safe operation in hazardous painting environments
High Material Utilization	Transfer efficiency reaches 90-95%, significantly reducing paint waste and material costs
PLC + Touchscreen Control	User-friendly HMI with offline programming capability; reduces on-site debugging time and improves system reliability
Flexible Programming	Supports teaching pendant programming and offline simulation software; adaptable to multiple product varieties on a single line
Multi-Product Capability	Can paint 2 to 5 different product types simultaneously on the same line
Dynamic Tracking Spraying	Real-time conveyor tracking enables inline spraying without stopping production
Integrated Curing System	IR and/or UV curing modules provide fast, energy-efficient drying with high-gloss, scratch-resistant finishes
Automated Unmanned Operation	Enables 24/7 continuous production with minimal manual intervention
Modular Design	Easy installation and maintenance; reduces downtime for cleaning and parts replacement
CE-Compliant Electrical System	Control components housed in separate electrical cabinets per CE specifications for enhanced safety

Technical Specifications

Parameter	Specification
Robot Type	6-axis articulated industrial robot
Payload	10kg – 25kg (depending on model)
Maximum Working Radius	1310mm – 2800mm (model-dependent)
Repeat Positioning Accuracy	±0.05mm – ±0.2mm
Conveying Speed	2 – 30 m/min (adjustable via inverter)
Processing Width	Up to 1300mm (customizable)
Processing Thickness	2 – 150mm
Paint Supply System	Centralized circulation with color change capability (up to 32 colors)
Spray Gun Type	High-pressure air spray, airless, or electrostatic rotary bell
Curing System	IR drying tunnel and/or UV curing oven
Control System	PLC + touchscreen HMI with offline programming support
Power Supply	380V / 50Hz, 3-phase
Explosion Protection	ATEX-certified or intrinsically safe design

Optional Configurations

Option	Description
Robot Models	Various 6-axis models with different reach and payload capacities
Spray Guns	High-pressure, air-assisted, or electrostatic rotary bell options
Conveyor Types	Chain-driven, belt conveyor, or roller conveyor systems
Curing Methods	IR drying, UV curing, or combined IR+UV systems
Color Change System	Up to 32-color automatic changeover with circulation
3D Vision System	CCD-based vision for automatic workpiece identification and path generation
Paint Supply	Centralized paint circulation with dual-component automatic mixing
Exhaust System	Water-curtain paint mist filtration or dry filtration

Summary

The Robot Automatic Spray Painting Line represents the pinnacle of modern coating automation—delivering unmatched precision, consistency, and efficiency for manufacturers across glass, metal, plastic, wood, and composite industries. By replacing manual spraying with advanced robotic technology, this system eliminates human inconsistency, dramatically reduces material waste, lowers labor costs, and enables 24/7 high-volume production. With flexible programming, modular design, and comprehensive integration capabilities, it is the ultimate solution for businesses seeking to elevate their coating quality and production capacity to the next level.
