Overview

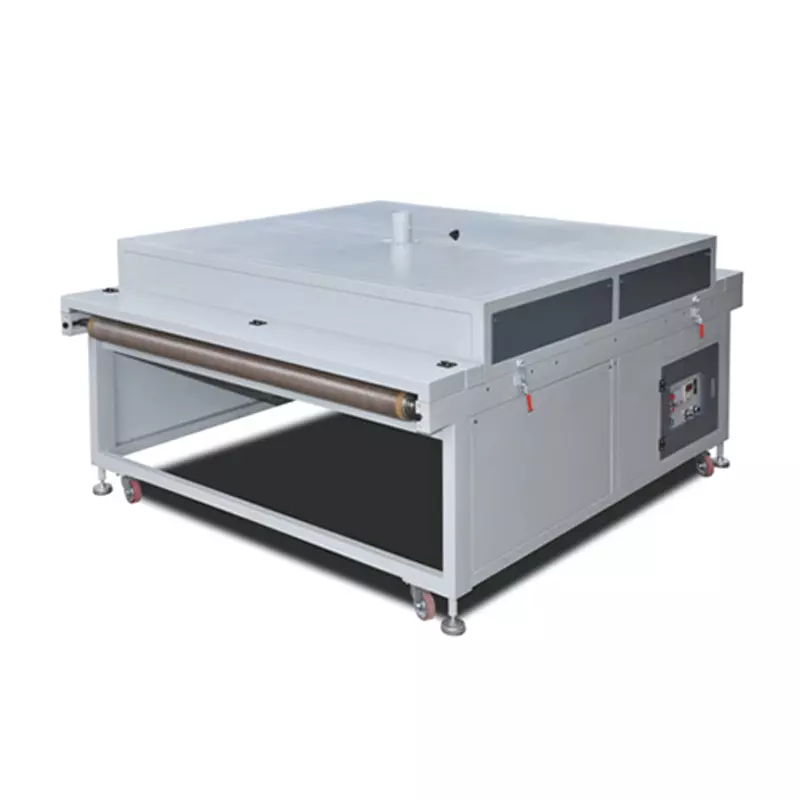

The Infrared (IR) Leveling Machine is an essential piece of equipment in modern coating finishing lines, designed for the critical post-application phase following roll coating, spray coating, or curtain coating. It serves as the vital intermediate process between coating application and final curing (e.g., UV curing), ensuring a smooth, even, and flawless surface finish before proceeding to the final drying stage.

This machine is widely used for leveling and defoaming coated flat substrates such as wood panels, furniture boards, doors, metal sheets, glass, and PVC. It is compatible with various coating types including water-based paints, UV-curable coatings, NC, PE, PU, and solvent-based paints.

Working Principle

The machine utilizes medium-wave infrared radiation heating technology to provide gentle yet penetrating heat directly onto the coating surface. After the workpiece is coated, it enters a temperature-controlled tunnel where infrared heating tubes emit specific wavelengths of radiation. This process accomplishes three primary functions:

1. Leveling and Defoaming – The radiant heat reduces coating viscosity, allowing the material to redistribute evenly and fill in streaks or irregularities. Simultaneously, it accelerates the evaporation of solvents and trapped air bubbles, eliminating defects such as pinholes, orange peel, brush marks, and flow marks.

2. Drying Promotion – The heat facilitates both physical drying (solvent evaporation) and chemical reactions in certain coatings (e.g., PU, PE), promoting film formation.

3. Pre-Curing Preparation – The coating is partially dried and leveled, ready for final curing in subsequent UV or high-temperature drying systems.

Key Features

Technical Specifications

Applications

The Infrared Leveling Machine is suitable for post-coating treatment on a wide range of materials:

• Wood-based materials: Furniture panels, doors, decorative wooden boards, flooring

• Metal sheets: Components requiring decorative or protective coatings

• Glass: Flat glass, architectural glass, and other glass substrates

• Other substrates: PVC sheets and similar materials requiring surface leveling and drying

It can be used as a standalone unit or seamlessly integrated into a fully automated production line with washing machines, roller coaters, spray coaters, and UV curing machines.

Key Advantages

• Superior Surface Quality – Uniform radiant heating effectively minimizes coating defects, resulting in a smoother, more consistent, high-gloss finish.

• Increased Production Efficiency – Rapid infrared heating shortens leveling and drying times, accelerating overall production pace.

• Energy Efficiency – Direct infrared heating targets the coating with high thermal efficiency, reducing energy consumption compared to conventional hot-air circulation methods.

• Operational Flexibility – Precise temperature control, stable conveying mechanisms, and modular design allow easy adaptation to various production requirements.

• Reduced Coating Defects – Effectively eliminates pinholes, orange peel, brush marks, and flow marks, significantly improving first-pass yield rates.
